APPENDIX II
GLOSSARY



Glosario[editar | editar código]

185


Alumina, or Oxide of Aluminium, is one of the most abun- dant of earths. Combined with silica it is the chief constituent of kaolins and China clays. It imparts refractory qualities to clays and is an indispensable ingredient of pure glazes. Pure alumina or calcined Aluminium is a chemical product.


Ammonia. A volatile gaseous matter, found in some clays. Alkaline in action.


Antimony. A silver-white metallic element, used with other oxides as a colourant or to give opacity in glazes.


Arsenic. A non-metallic volatile element, used in glaze making.


Barytes. A heavy spar used with clays to introduce density and vitrescence.


Bauxite. A very aluminous earth, used in preparation of pure alumina and to render clays refractory.


Boracic Acid. The natural and, usually, impure prod- uct (boric acid being free from chemicals).


Borax. The combined chemical product of soda and boracic acid. Used as a strong flux in glazes.


Calcined Bones. The residuum of burned bones, used to stiffen artificial porcelain.


Calcined Kaolin. Kaolin after it has been subjected to heat to drive off the water combined with it.



186


Calcium Carbonate (Whiting). Found as a white rock, and ground to pure powder. Used with clays for soft bodies. Gives durability to glazes.

Calcium Oxide (Lime). A widely distributed earthy matter. Imparts fusibility to clays, in nearly all of which it is present in varying proportions.

Chrome, Oxide of. Used in making greens, browns, and blacks. Stands a high fire.

CLAYS:

Ball Clay. Blue and black. Very plastic clays. Used with non-plastic materials, such as flint, stone, felspar, or whiting, to form fine earthenwares.

Cane and Red Clays. Clays coloured by the presence of ferric oxide, and used extensively for bricks, terra-cotta tiles, and common pottery.

China Clay. A yellowish-white, non- vitreous clay, prod- uct of the decomposition of granitic or felspathic rocks. Cornish China clay is exceptionally white, pure, and plastic. It is widely used with China, or Corn- wall stone and calcined bones, to make bone porcelain. Felspar is added to render it vitreous. Mixed with ball clays, pipe clays, flint, and stone, it makes the various classes of earthen and stone wares.

Pipe Clay. A very white, smooth clay. Less plastic than ball clays. Much used for making slips, en- gobes, and enamels.

Saggar Clays or Fire Clays. Coarse refractory clays strengthened by the addition of grog, used for saggars, fire tiles, and bricks.

Cobalt Oxide. The oxide of the steel-grey hard metal. Extremely valuable in pottery, making all shades of blue for under-glaze printing or staining. With iron or copper gives blue-greens.



187

Copper, Oxides of, and Carbonate. - Red, green, and black oxides of copper have been of the utmost value to potters. They are used to produce green, blue, turquoise, red, and crimson. Its extraordinary changes in reducing or oxidizing fires are of the greatest interest to the experimenter.

Cornish or China Stone. A rock composed of felspar and quartz. Its vitrification (about 1400 C.) im- parts hardness and density to China clays. It is a valuable constituent of glazes. First known as " moorstone " or " growan."

Earthy Colourants. Rarely used in modern commercial pottery, except for salt-glazed jars, crocks, and peasant pottery.


Felspar. A fusible rock found almost pure or in combina- tion with potash and soda, the greater the percen- tage of alkalies the more fusible being the spar. It is used to replace more refractory materials in clay and to stiffen glazes.


Flint. A pure silica with slight traces of calcium. Found in pebble form on seashores. Calcined and ground to a white powder, it is widely used to impart whiteness and strength to clays. Invaluable for bedding and packing in kilns. Used with the fluxes, lead, borax, potash, and soda, to make glazes and glass.


Fluorspar. A combination of fluorine and calcium, more fusible than felspar, and of a white colour, felspar being pink.


Galena. Lead sulphide, a highly poisonous material used on " peasant " pottery, giving a soft, yellowish, transparent glaze.

Gold. Used in solution for delicate purples and lustres.



188

Gypsum. When calcined gypsum becomes plaster of Paris, these two materials, together with the allied marble, limestone, and alabaster, are widely used in pastes (such as Parian), slips, engobes, and variously to impart fusibility or colour properties to glazes.


Iron, Oxides of. Have a wide range of colour, from yellow to purple. They are used to stain glazes and colour bodies. They impart fusibility to clays and are carefully excluded from fine white bodies.

Kaolin. A fine, white, very pure, and infusible China clay, almost pure alumina and silica. Chiefly used in the manufacture of porcelain and fine earth- enware.

Lead (Oxides and Carbonates of). White Lead, Red Lead, Litharge. Are very widely used as a safe and cheap flux. Poisonous. It cannot be used in those glazes that have to stand a high fire.

Lime. (See Calcium.)

Lynn Sand. (See Quartz Sand.)


Magnesia. A white metallic element present in small quantities in most clays.

Manganese. The black and brown oxides of this hard metal are much used to stain slips and bodies, and to colour glazes brown or purple.

Marls. Amorphous deposits of lime, sand, and clay, very coarse in texture. Used in making saggars, drain pipes, and similar appliances.

Nickel. A hard metallic element, the oxides of which are found useful in preparing blacks, greys, and greens.

Nitre or Potassium Nitrate, or Saltpetre. A vitreous and aqueous compound, used in some glazes.

Plaster of Paris. (See Gypsum.)

Potash. Potassium carbonate or the leached ashes of plants. Used from earliest times as a powerful alkaline flux.


189


Potash, Bichromate of. Used for pinks and crystal- line effects. Poisonous.


Quartz or Quartz Sand. Like Lynn or silver sand. This mineral is pure silica and free from lime, al- though the sands may contain some small percentage of iron. Used much like flint for bedding or with alkaline fluxes for the finest glazes.


Rutile. Oxide of Titanium. Used variously to im- part a yellow tinge to porcelain, and colour and irregularity to some glazes.


Salt. Sodium chloride. Sometimes used in glazes, but best known in connection with salt glazing. It vaporizes at about 1200 C., forming a silicate or hard, thin skin of glaze over the clay.


Silica. A hard, colourless crystalline element ; found pure, as in quartz, or in combination with alumina and alkalies, as in all clays. Present in all glazes.


Soda. Sodium Carbonate. Product of the decomposi- tion of salts with acids. It is a strong alkaline flux and much used in glaze and glass-making.


Silver Sand. (See Quartz.)


Tin, Oxide of. Used from the earliest times to impart opacity to glazes.


Tincal. (See Borax.)


Titanium. (See Rutile.)


Whitening. (See Lime.)


Zinc, Oxide of. A white metallic oxide ; used to brighten and stabilize glazes and colours.

POTTER's TERMS[editar | editar código]

190


POTTER's TERMS

Bags. Chimneys or walls of fire bricks built to protect the ware from flame.


Baitings. The feed of fuel during firing.


Bat. Any flat slab of plaster, biscuit, or fire clay.


Biscuit. The fired but unglazed clay.


Blowing. The shattering of the clay shape when biscuit- ing. Usually due to hurried firing or the sudden access of heat, and the consequent generation of steam.


Blunger. A machine for mixing clay.


Bungs. Piles of filled saggars.


Chuck or Chum. The cone or cap used to support shapes during turning on the lathe.


Clamming. The wet marl, sand, or siftings applied to cracks in the hatches or doors of kilns to retain the heat during firing.


Craze. The minute cracks that appear in a badly fitting glaze. When arrived at by design, as in some Chinese work, it is termed a crackle, but there is then no fissure.


Drawing. Unpacking the kiln after firing.


Engobe. A dip or outer covering of slip ; usually ap- plied to inferior bodies to improve their appearance.


Fat. Clays that are sticky or greasy are sometimes termed fat by potters.


Fettle. To touch up, and remove traces of seams, cast lines, etc.


Fluxes. Those materials which by their addition to paste or glaze render them fusible, although they may not always be fusible themselves.


Glost. The glazed ware, usually applied to the glaze in firing, as glost-oven.

191[editar | editar código]

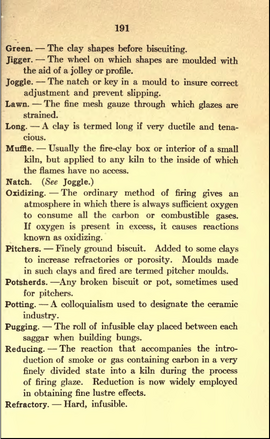

191

Green. The clay shapes before biscuiting.

Jigger. The wheel on which shapes are moulded with the aid of a jolley or profile.


Joggle. The natch or key in a mould to insure correct adjustment and prevent slipping.


Lawn. The fine mesh gauze through which glazes are strained.


Long. A clay is termed long if very ductile and tena- cious.


Muffle. Usually the fire-clay box or interior of a small kiln, but applied to any kiln to the inside of which the flames have no access.


Natch. (See Joggle.)


Oxidizing. The ordinary method of firing gives an atmosphere in which there is always sufficient oxygen to consume all the carbon or combustible gases. If oxygen is present in excess, it causes reactions known as oxidizing.


Pitchers. Finely ground biscuit. Added to some clays to increase refractories or porosity. Moulds made in such clays and fired are termed pitcher moulds.

Potsherds. Any broken biscuit or pot, sometimes used for pitchers.


Potting. A colloquialism used to designate the ceramic industry.


Pugging. The roll of infusible clay placed between each saggar when building bungs.


Reducing. The reaction that accompanies the intro- duction of smoke or gas containing carbon in a very finely divided state into a kiln during the process of firing glaze. Reduction is now widely employed in obtaining fine lustre effects.


Refractory. Hard, infusible.

192[editar | editar código]

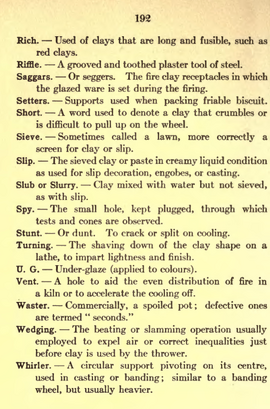

192

Rich. Used of clays that are long and fusible, such as

red clays.

Riffle. A grooved and toothed plaster tool of steel.

Saggars. Or seggers. The fire clay receptacles in which the glazed ware is set during the firing.

Setters. Supports used when packing friable biscuit.

Short. A word used to denote a clay that crumbles or

is difficult to pull up on the wheel. Sieve. Sometimes called a lawn, more correctly a screen for clay or slip.


Slip. The sieved clay or paste in creamy liquid condition as used for slip decoration, engobes, or casting.


Slub or Slurry. Clay mixed with water but not sieved, as with slip.


Spy. The small hole, kept plugged, through which tests and cones are observed.


Stunt. Or dunt. To crack or split on cooling.


Turning. The shaving down of the clay shape on a lathe, to impart lightness and finish.

U. G. Under-glaze (applied to colours).


Vent. A hole to aid the even distribution of fire in a kiln or to accelerate the cooling off.


Waster. Commercially, a spoiled pot ; defective ones are termed " seconds."


Wedging. The beating or slamming operation usually employed to expel air or correct inequalities just before clay is used by the thrower.


Whirler. A circular support pivoting on its centre, used in casting or banding; similar to a banding wheel, but usually heavier.

MATERIALS, TERMS, ETC.[editar | editar código]

193


C = Combining Weight E = Equivalent Weight

	Symbol	C or E	Fusing Point

Alumina (calcined) Al2O3 C 102 Very infusible

Alumina (hydrated) Al2O3·3H2O C 156

Aluminium Al E 27 627° C.

Ammonia NH3 Volatile

Antimony Sb E 120 432° C.

Antimony oxide SbO

Arsenic As E 75 500° C.

Barium (metallic element) Ba E 137 Fuses above red heat

Barium carbonate BaCO3 C 197

Barytes BaSO4 C 233 Fuses about white heat

Bauxite

Bismuth Bi E 28

Borax (crystals) Na2B4O7·10H2O C 382 Very fusible

Boric acid (crystals) B2O3·3H2O C 124

Boric acid (dry) B2O3 C 70 High fusing point

Boron (metallic element) B E 11

Calcined bones Infusible

Calcined kaolin

China clay (fine) Al2O3·2SiO2 C 222 Very infusible slightly vitreous at highest fire

Calcium oxide (lime) CaO C 56 Very refractory if alone but fusible with clays

Calcium carbonate CaCO3 C 100 China stone

Cornish stone 8SiO2·2Al2O3·K2O 1379 1300° C. about

Chrome oxide Cr2O3 C 79

Chromium Ca E 51 Above platinum

Cobalt Co E 59 1500° C.

Cobalt oxide Co2O3 C 165

Cobalt oxide (black) Co2O4 C 240

Copper Cu E 63 1054°-1084° C.

Copper oxide (black) CuO C 79.5

Earthy colourants

Ochres
Siennas
Umbers

Felspar 6SiO2·Al2O3·K2O C 556 1200°-1300° C. about, according to purity

Flint (calcined) SiO2 C 60 1830° C. about

Fluorspar CaF2 Much lower than felspar

Galena (lead sulphide) PbS Very fusible

Gold Au E 147 1054°-1075° C.

Gypsum (plaster of Paris, if calcined) CaSO4·2H2O C 172

Iron Fe E 56 1530°-1600° C. about

Iron oxide Fe2O3 C 160

Iridium Ir E 193 1950° C. about

Kaolin (see calcined kaolin) Al2O3·2SiO2·2H2O C 258 Infusible

Lead (metal) Pb E 206 326° C.

Lead carbonate PbCO2

Lead, red oxide of Pb3CO4

Lime (see calcium oxide or carbonate) CaO

Lynn sand (see silver sand) SiO2

Magnesia (calcined) MgO C 40 430° C.

Magnesia (carbonate) MgO·CO2

Manganese, carbonate MnCO3 C 115

Manganese (metal) Mn E 55 1670° C. about

Manganese oxide (or black) MnO2 C 87

Nickel (metal) Ni E 58 1427°-1450° C.

Nickel oxide NiO C 75

Nitre KNO3

Pearl ash or potash KOH

Plaster of Paris (calcined gypsum) CaSO4·1⁄2H2O C 145

Platinum Pt E 197 1710°-1775° C.

Potash, bichromate of K2Cr2O7 Fuses dull-red heat

Potassium carbonate K2CO3 C 138

Potassium oxide K2O C 94

Quartz

Quartz sand SiO2 C 60 1830° C. about

Rutile (see titanium)

Salt NaCl 776° C.

Silica SiO2 C 60

Silver sand (or quartz sand) SiO2

Silver (metal) Ag E 107 945°-962° C.

Soda ash (calcined) Na2CO3 C 106

Soda crystals Na2CO3·10 H2O C 286

Sodium oxide Na2O C 62

Tincal (see borax)

Tin (metal) Sn E 119 233° C.

Tin oxide (white) SnO2 C 150

Titanium oxide (rutile) TiO2 Infusible

Uranium (metal) U E 239 1800° C. about

Uranium, oxide of U3O8

Whitening (see lime carbonate)

Zinc (metal) Zn E 65 443° C.

Zinc oxide (white) ZnO C 81

195[editar | editar código]

195

SEGER CONES. (STANDARD CONES. ABOUT 10 HIGHER.)[editar | editar código]

196



NUMBERS. TURNING POINTS. COLOUR, ETC.

APPROXIMATE DEGREES or

COLOUR IN KILN CONK HEAT AT WHICH MATERIALS SUITABLE TO BE FIRED NUM- CONE TURNS AT THESE TEMPERATURES

BER OR BENDS (APPROXIMATE)


Centigrade


Commences to f'J show colour \ m 670 o


L Soft enamel or over-glaze colours.



.019 690



Dull red


.018 710 .017 730 .016 750


Enamels on metals. Fluxes and lustres.



.015 790




.014


815



Red to cherry 4


.013 .012


835 855


Very soft glazes and hard enamel colours. Some



.011


880


lustres. Gilding.



.010


900




.09


920



.08


940



.07



960



Dull cherry to


.06



980


Majolica glazes or coloured


light cherry


.05



1000


glazes and stanniferous or tin



.04



1020


glazes.



.03



1040




.02



1060


Earthenware glazes. Soft



.01



1080


China glazes.



1



1100



Dark orange to pale orange


i

2 3



1 Jww

1120 1140


Soft to hard or fine earthen- ware biscuit.



4


1160



5


1180 Sevres soft bisque.


Yellowish white


6

7 8


9 o 1 Vitreous ware. Granite ware. 11250] S* 11 *** Stoneware.



9


1280 English bone porcelain or China



10


1300 biscuit


White 4





1 1


1320


Intense white


12] [1350 } 13 1 1 1380 ( German and Chinese porcelain.



14 J 1410 Sevres porcelain.


197


SEGER CONES. (STANDARD CONES. ABOUT 10 HIGHER.)

NUMBEBS. TURNING POINTS. COLOUR, ETC.

APPROXIMATE DEGREES OF

COLOUR IN KILN CONE HEAT AT WHICH MATERIALS SUITABLE TO BE FIBED NUM- CONE TURNS AT THESE TEMPERATURES

BER OR BENDS (APPROXIMATE)

Centigrade 15 1430


Bluish white f 16 1 1460

117 J


1480 Copenhagen porcelain.


To convert temperatures :[editar | editar código]

Centigrade into Fahrenheit. Divide by 5, multiply by 9, and add 32.

Fahrenheit into Centigrade. Subtract 32, divide by 9, and multiply by 5.



MEASURES, WEIGHTS, ETC.[editar | editar código]

APOTHECARIES

1 grain = .0648 gramme.

20 grains = 1 scruple = 1.296 grammes.

3 scruples = 1 drachm = 3.888 grammes.

8 drachms = 1 ounce = 31.103 grammes.

TROT

1 grain = .0648 gramme.

24 grains = I. penny weight = 1.555 grammes.

20 pennyweights = 1 troy ounce - 31.1035 grammes.

AVOIRDUPOIS

16 drams = 1 ounce. 16 ounces = 1 pound. 14 pounds = 1 stone. 28 pounds = 1 quarter. 112 pounds = 1 hundredweight (cwt.). 20 hundredweight - 1 ton (2240 Ibs.).

198[editar | editar código]

CAPACITY (WET)

1 gill =1.42 decilitres.

4 gills - 1 pint - .568 litre.

2 pints - 1 quart - 1.136 litres.

4 quarts - 1 gallon - 4.545 litres.

2 gallons = 1 peck - 9.09 litres.

4 pecks - 1 bushel.

8 bushels - 1 quarter.


BOOKS OF REFERENCE

TECHNICAL

Chemistry of Pottery. Langenbeck, Karl. ^ Chemistry of Pottery. Shaw, Dr. S.

Clays. Occurrences, Properties, and Uses. Ries.

Colouring and Decorating of Ceramic Ware. Brongniart, A.

Ceramic Technology. Binns, C. F.

Notes on the Manufacture of Earthen Ware. Sandeman, E. A.

Notes on Pottery Clays. Fairie, Jas.

Pottery Decoration. Hainbach, R. TECHNICAL AND HISTORICAL

Leadless Decorative Tiles. "I _,

, _ . . } Furnival, W. J.

Faience and Mosaic, and other volumes. J

MANUAL

Pottery. I. mm. Richard.

Grand Feu Ceramics. D'oat, Tarile.

The Potter's Craft. Binns, C. F.

Practical Keramics for Students. Janvier, C. A. HISTORICAL AND ARTISTIC

Art of the Old English Potter. Solon, L. V.

Chinese Porcelain. Gulland.

Chinese Porcelain. Monkhouse, Cosmo.

Ceramic Art in Great Britain. Jewitt, L.

History of Pottery and Porcelain. Marryat.

Majolica. Fortnum, C. D. E.



199[editar | editar código]

Potters, Their Arts and Crafts. Sparkes and Gandy.

Pottery and Porcelain in the United States (and other volumes). Barber.

Persian Ceramic Art (and other volumes). Wallis, H.

Illustrated catalogue of the Faience of Persia and Near East. Bur- lington Fine Arts Club.


BISCUIT SHAPES.

CHINA AND BALL.


APPLIANCES AND MATERIALS, ETC.

SOLD BY BALL MILLS. Wengers, Ltd. Eng. (Hanley, Stoke

on Trent.) Abbey Engineering Co. 220 Broadway,

N. Y. City, U. S. A. Hirshberg Art Co. Baltimore, Md. Mandle and Sant. East Liverpool,

Ohio, U. S. A.

Stewart & Co. N. Y. City, U. S. A. Wengers. Hanley, Great Britain. Western Stoneware Co. Monmouth,

Dl., U. S. A. W. H. Cutter, Woodbridge, N. J.,

U. S. A.

Wengers, Ltd. Hanley, Eng. Drackenfeld & Co. Murray St., N. Y.

City, U. S. A.

Professor Ed. Orton. Columbus, Ohio. Wengers, Ltd. Hanley, Eng. Drackenfeld & Co. Murray St., N. Y.

City, U. S. A. Roessler, Haslacher Chemical Co.

William St., N. Y. City, U. S. A. Fletcher, Russell. Warrington, Eng. Bellevue Perfection. Detroit, Mich.,

U. S. A.


CLAYS


CONES.


CHINA AND MODEL- LING.

MODELLING AND STONEWARE

SAGGAR AND STONE- WARE.


GLAZES.


KILNS. GAS.

KILNS. GAS AND OIL.


200[editar | editar código]

KILNS. OIL.

KILNS. TRIAL. LAWNS AND SIEVES.


PLASTER.

QUARTZ, FLINT, FELSPAR.

SCALES. STILTS, ETC.

U. G. COLOURS, ETC. WHEELS.


Caulkins Revelation. Detroit, Mich.,

U. S. A.

Wengers, Hanley, Eng. Drackenfeld & Co. 50 Murray St.,

N. Y. City. A. Sartorious & Co. Murray St., N. Y.

City.

Wengers. Hanley Staffs, Eng. Wengers. Hanley, Eng. Drackenfeld & Co. N. Y. City. Calvin Thompkins. Battery PI., N. Y.

City.

Wengers, Ltd. Hanley, Eng. Drackenfeld & Co. Murray St. N. Y.

City, U. S. A. Golding & Sons. Trenton, N. J.,

U.S. A.

Wengers. Hanley Staffs, Eng. Hy. Troemner. Philadelphia, Pa.,

U.S. A. Trenton Stilt & Spur Co. Trenton,

N. J., U. S. A. Wengers. Hanley, Eng. Wengers. Eng.

Drackenfeld & Co. N. Y. City, U. S. A. Crossley Mfg. Co. Trenton, N. J.,

U. S. A. T. S. Nickerson. Newburyport, Mass.,

U. S. A.


THE ARTISTIC CRAFTS SERIES OF TECHNICAL HANDBOOKS



\\


A


H II


14 DAY USE

=^ RETURN TO DESK FROM WHICH BORROWED


LOAN DEPT.


This book is due on the last date stamped below, or

on the date to which renewed. Renewed books are subject to immediate recall.


m


-r-


'P LJ


MOV a 7

FOR*



LD


QCTU'64-llAM f


|...-


3 1963


t&


'64-8 AM


LD 21A-50m-4,'60 (A9562slO)476B


General Library

Unirersity of California

Berkeley


^ ! j 1



)F CALIFORNIA LIBRARY if iK . OF CALIFORI

- -* /^N\\ /T?\ .."'




3F CALIFORNIA LIBRARY OF THE UNIVERSITY OF CALIFOR

El contenido de la comunidad está disponible bajo CC-BY-SA a menos que se indique lo contrario.
